60*90 UV Printer with 3 Epson Printheads

Ver imagen más grande y otras vistas (con zoom)

60*90 UV Printer with 3 Epson Printheads

| 9 Transacciones

Codigo del articulo:SIT-NC-6090MAX-3200

Precio Unitario : COP 92,517,462/set (Aviso de Descuento) (Tiempo entrega 69-89 días)

Por Favor Eliga el Tipo

3-head Cylinder

Cantidad: set(s) Costo Total :
COP COP92,517,462
Peso de Envio: 792.0lb (360kg) Flete
item añadido al carro

0 total en su carro, Total del carrito: COP
Los Clientes Que Compraron Este Artículo También Compraron

< >
Original Epson Stylus Photo R1390 Cartridge Chip Board (CSIC) - 1454340

COP38337/pc

Original Epson Stylus Photo R1390 Cartridge Chip Board (CSIC) - 1454340

COP38337/pc

El vendedor asume toda la responsabilidad de este listado

Envío y manipulación

Cantidad: Pais:

1.Si opta por enviar por expreso, se puede ver que el honorario del envío es un poco alto, pero puede entregar a su puerta dentro de 3-5 días, sólo tiene que hacer el pago y esperar.
2.Si opta por enviar por mar, la tarifa de envío es más bajo, y hay que ir a los puertos para que el liquidación en la Aduana, y tomar la mercancía desde el puerto hasta su casa por sí mismo. Generalmente se toma from10 a 30 días, dependiendo de la dirección del destinatario.

Tiempo de Manejo

Enviará generalmente dentro de 3 días hábiles después de recibir el pago aprobado.

Enviar de Donde?

Tenemos 4 almacenes en el extranjero en todo el mundo que ahora incluye: Rusia, EE.UU., Brasil y México. y Estamos creando otro en Europa. Normalmente, enviaremos su pedido desde el almacén más cercano a usted. si las existencias cerca de usted están agotadas, le enviaremos su pedido a usted directamente de China.

política de devolución

Las compras pueden devolverse en las siguientes condiciones :: 1)Hay problemas de calidad después de abrir el paquete.; 2) Los productos son diferentes que en la lista de pedidos.; 3)Los productos se dañaron irreparablemente durante el transporte.

Detalles del pago

Forma de pago

1.PayPal (pagos en línea)
2.Tarjeta de crédito
3.Transferencia bancaria(T / T)
4.Western Union pago en línea / fuera de línea

Historial De Transacciones

Transacciones: 9

Comprador
Precio Unitario
Cantidad
Fecha De Orden

Jac****
$92517462.00
1 set
2025-03-31

Mar****
$94830401.00
1 set
2025-02-04

Dea****
$84216607.00
1 set
2024-12-09

Ter****
$8085357.00
1 set
2024-10-18

Dio****
$7028039.00
1 set
2024-09-24

Ode****
$7214626.00
1 set
2024-08-10

Han****
$7028039.00
1 set
2024-07-01

Lar****
$7028039.00
1 set
2024-06-02

Dom****
$67049380.00
1 set
2024-03-04

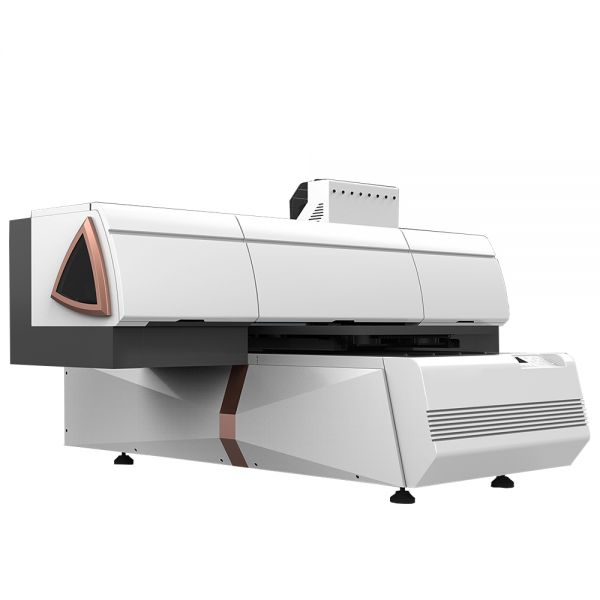

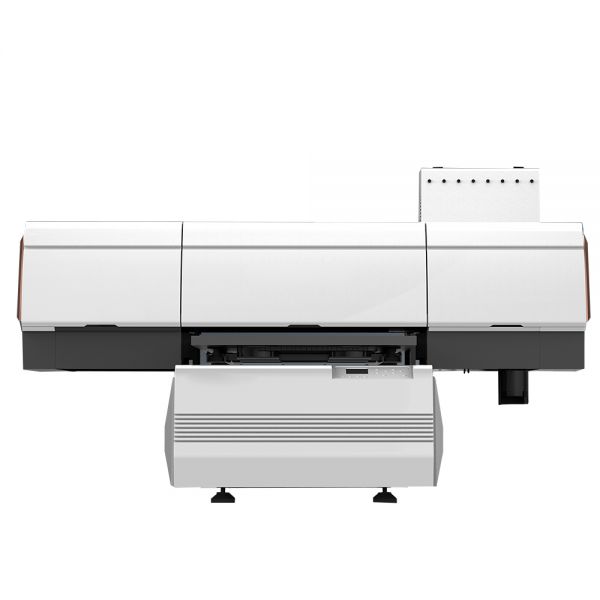

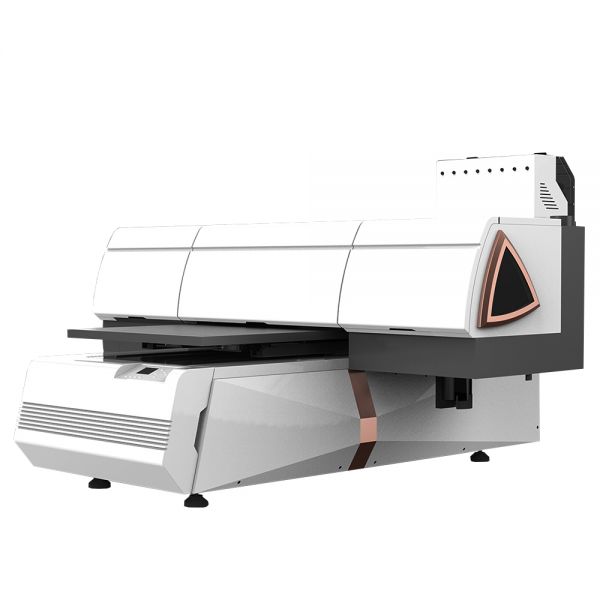

60*90 UV Printer with 3 Epson I3200-U1 Printheads

Description:
It is the best choice for startups and medium-size businesses! Our ink delivery system prevents the white ink from clogging Printhead. Hassel-free operation. Breaking through the bottleneck of digital printing technology, can achieve a piece of paper printing, no plate-making, full-color image printing. The original design and manufacture was mainly used for the printing of rigid materials, which broke the limitation that inkjet technology can only print on soft materials.

1. Personalized design, unique suction platform to ensure flat printing;
2. Support CMYKLcLm+W+V printing at same time with fast speed, high efficiency and time saving;
3. Compared with the modified machine, more compact structure, less application boards, more stable performance, and more convenient maintenance;
4. Epson I3200 printhead, cost-effective, high precision, easier to maintain and replace;
5. Intelligent ink supply system: new board control, built-in ink heating system, ink circulation in the ink tube to prevent ink precipitation;
6. New ink stack design, cleaning and moisturizing function, ink car self-locking function, lock the ink cart when not printing, prevent the ink stack from rebounding;
7. Independent flashing setting: designed for printhead flashing, which makes the printhead use more smoothly. The aluminum beam is equipped with an air purification system to remove dust, moisture and other interference printing factors.

Application:
For printing gifts, crafts,paper, glass,cup,mobile phone cell, glass, acrylic, PVC,boards ,leather, canvas,etc.

Specification:

Printhead configuration		Epson i3200-U1*1White	Epson i3200-U1HD*1Color	Epson i1600-U1*1Vanish
Print head picture
Nozzle spray force rang		2-12mm	2-12mm	2-12mm
Number of nozzles		3200(indivual)	1600(indivual)	3200(indivual)
Distance between nozzls		1/300(inch)	1/300(inch)	1/300(inch)
Number of nozzle rows		8	8	4
Maximum number of support ink colors		4	8	4
Droplet ejection performance (droplet volume an dejection fre quency)	2 levels of grayscale	5pl(43.2kHz)	5pl(43.2kHz)	5pl(43.2kHz)
	3 levels of grayscale	6,12.5 pl(21.6kHz)	6,12.5 pl(21.6kHz)	6,12.5 pl(21.6kHz)
	4 levels of grayscale	3.8,6.2,9.3 pl(21.6kHz)	3.8,6.2,9.3 pl(21.6kHz)	3.8,6.2,9.3 pl(21.6kHz)
Print size		600*900mm
Print height		0-180mm
Print version		White,Color&Varnish
Print mode		CMYK Lc Lm Lk LIk+W+V
Resolution		720600dpi/720900dpi/720*1200dpi
Printer dimension		1676mm1638mm975mm
N.W.		226KG
Packing size		1.86m1.81m1.05m
G.W.		430KG
Rip software		FlexiPRlNT MiniServer 22 Nocai Edition
Print speed range	High quality mode (8pass)	9-23min/version
	Standard production mode (6pass)	7-17min/version
	High-speed production mode (4pass)	4-12min/version
Graphic and text format		Tiff,Jpg,Eps,Pdf,Png,AI
Connection method		Cable
Voltage		AC220V/110V+10，50HZ~60HZ
Rated power		470W
Working environment	Temperature	20°C-28°C
	Humidity	35%-65%
Operating conditions	Dust	Avoid dusty environments
	Illumination	Avoid direct sunlight
Ink type		Environmentally friendly UV curing ink

Fixture (optional)
Electric cylinder fixture
Support cylinder diameter	Φ30-120mm
Support cylinder length	40~430mm
Applicable materials	Spray paint cup, stainless steel, plastic, glass, ceramic,wood, acrylic,etc.
Round bottle printing method	C+W (Round bottle mode does not support varnish printing)
Round bottle printing speed	3-20min/indivual
Cylindrical fixture packaging dimensions	683914cm
Cylindrical fixture packaging weight	12KG

Product size:
Details:

EPSON I3200-U1 Printhead
High precision, high efficiency, bright and delicate colors.

Full Coverage Shade Cover
Light, dustproof, more safety.

Standard scale printing platform
Made of aluminum plate material, internal honeycomb structure, Not easy to deform, high flatness.
Retractable control panel
The panel can be stretched and adjusted, and the operation is convenient.

Double row linear guide
x-axis adopts double-row linear guides, which makes printing more stable and ensures printing accuracy.
Lifting ink station design
Driven by motor, accurately control the position, intelligently protect the print head.
Smart Touch Collision Avoidance System
The bottom of the ink car is equipped with an anti-collision sensing device to protect the print head and the product from being scratched.
Electric Cylindrical Fixture
Accurate alignment, convenient operation, and 360 degree rotation printing.
